offshore Support
We are specialized in designing and production of equipment needed for the protection, anchoring, and stabilization of sea lines and submerged cables of all sizes according to client requirement. Offshore equipment produced and supplied by OPCS, are listed below

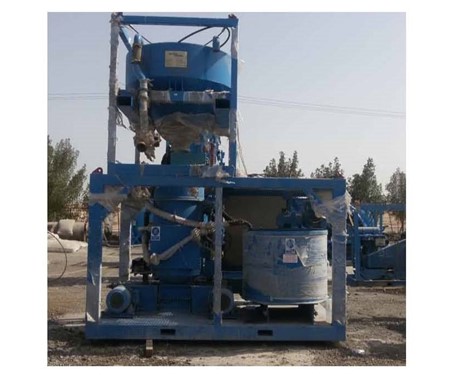

Self-Contained Grouting Skid
Skid Dimension 4:00×2.50x 2.35m
Feed Tank Dimension 2.00×2.50×2.35m
self-Weight 6ton
| I.D. | Description | Specifications | Qty | |
| 1 | Cement Mixer | Tank Capacity | 350 liters | 1 |
| Output Rate | 16m³/h | |||
| 2
|
Electrical Screw Pump
|
Flow Rate | 8701/min@0bar | 1 |
| Maximum Pressure | 20 bar | |||
| 3 | Slurry Agitator | Capacity | 1m³ | 1 |
| 4 | Feed tank | Capacity | 1.5m³ | |
Requirements:
| Power | Water | Air |
| 3 Phase,440V,60HZ,120 Kw,100 am | 10 L/sec | 100 cfm@100 psi |

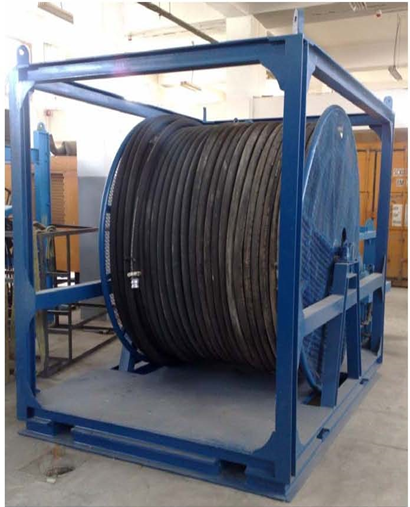

Hose Reel
Overall Dimensions: 3:00 x2.50×2.40m
Self-Weight:5.0 Ton with Hose
Requirements:
| Power | Water | Air |
| 3 Phase,380-440V,60HZ,120 KW,50HZ,11Kw,32amp | Nil | Nil |

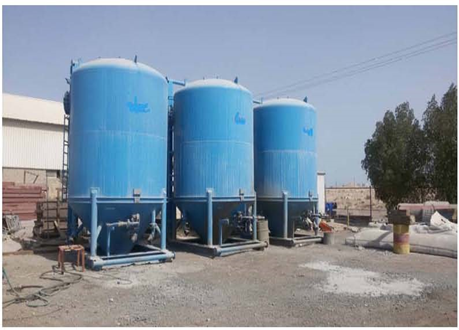

Vertical Cement Silo
Overall Dimensions:4.5×3.20×3.0m
Gross Weight:47 Tons
Tare Weight:7 Tons
| I.D. | Description | Qty |
| 1 | Pressure Safety Valve 2.2 bars | 1 |
Requirements:
| Power | Water | Air |
| Nil | Nil | 17m³/min @ 2 bar |

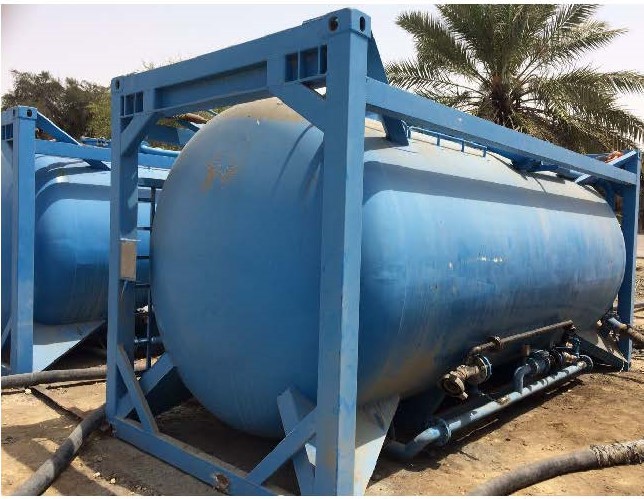

Horizontal Cement Silo
Overall Dimensions:
( H x W x H): 6.00m x 2.50m x 2.90 m
Maximum Gross Weight
34 Ton Tare – Weight 4.755 Ton
Requirements:
| Power | Water | Air |
| Nil | Nil | 20m3/min @ 2 bar |

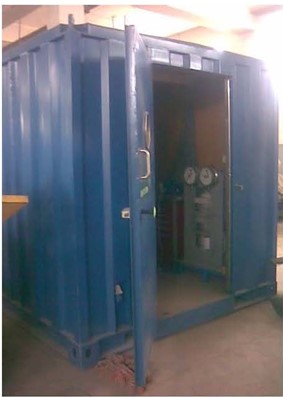

Lab Container
Overall Dimensions: 3.05×2.45×2.65mSelf-Weight: 3 Ton
| I.D. | Description | Qty |
| 1 | Crush Test Machine | 1 |
| 2 | Curing Tank | 1 |
| 3 | Equipment’s spare parts storage | 1 |
| 4 | Cube Molds | TBA |
| 5 | Workshop | 1 |
| 6 | Air Conditioning | 1 |
Requirements:
| Power | Water | Air |
| 1 Phase, 220 V, 5Kw, 16 Amp. | Fresh Water Supply | Nil |

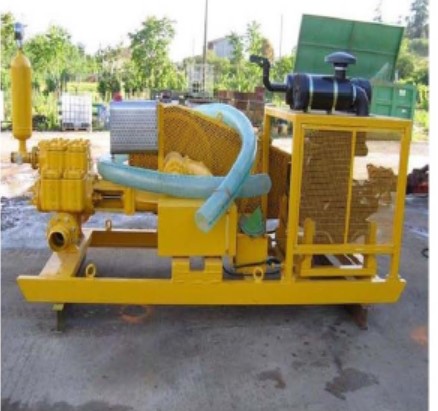

Jet Grouting Diesel Powered H.P. Pump
Overall Dimensions: 3x 2 x 1.8 m
Self-Weight: 3 Tons
| I.D. | Description | Specification |
| 1 | Diesel Engine | Deutz 45 HP |
| 2 | H.P. Duplex Pump | Outlet Flow 5581/min@25 Bar w/c5’’ Pistons 2631/min@25 Bar w/c5½’’ Pistons |
Requirements:
| Power | Water | Air |
| Nil | Fresh Water Supply | Nil |

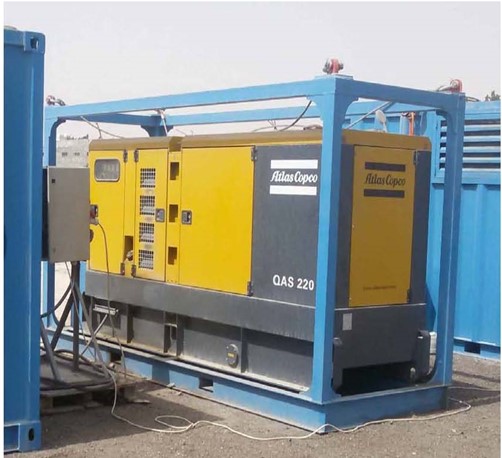

Generator Skid
Overall Dimensions: 4 x 1.8 x 2 m
Self-Weight: 4 Tons
| I.D. | Description | Specification |
| 1 | Diesel Generator | 440V 3 phase 220 Kva |
Requirements:
| Power | Water | Air |
| Nil | Nil | Nil |
